300BPH Automatic Plastic Bottle 3 Gallon 18.9L Bottled Water Filling Capping Machine

Brand Name : FILLPACK

Model Number : QGF-300

Certification : CE/ISO9001

Place of Origin : Zhangjiagang, China

MOQ : 1 set

Price : 6930 USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 Sets Per Months

Delivery Time : 15 Working Days After Deposit

Capacity : 300BPH

Volume : 18.9 L

Filling heads : 2

Dimension(L*W*H) : 3400*1000*1750mm

Packaging Material : Plastic

Core Components : Motor, Pump, PLC

Barrle size : 270*490 mm

Gas pressure : 0.4-0.6 Mpa

Filling Accuracy : ±1mm

Voltage : 380V

Contact Now

300BPH Automatic Plastic Bottle 3 Gallon 5 Gallon 18.9L Bottled Water Filling And Capping Machine

300BPH Automatic Plastic Bottle 3 Gallon 18.9L Bottled Water Filling Capping Machine

QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.



Parameters:

Model
QGF-120
QGF-200
QGF-300
QGF-450
Filling heads
1
2
2
3
Volume
3-5 gallon
Barrel size
Φ270*490mm
Capacity
120BPH
200BPH
300BPH
400BPH
Air press(Mpa)
0.37
0.37
0.6
0.8
Power supply
1.38KW
2.5KW
5.3KW
5.6KW
Dimension
3400*780*1950mm
3400*780*1950mm
3400*1000*1750mm
5000*2000*1800mm
Weight
400KG
500KG
700KG
1000K



Details

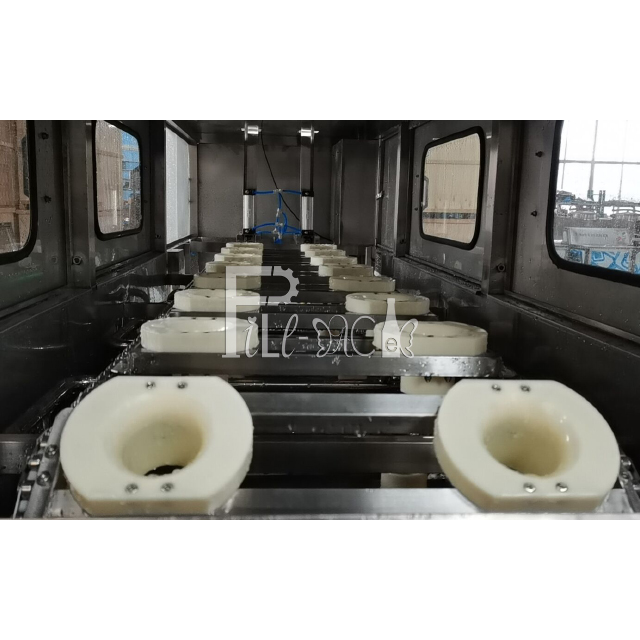

Washing part
<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump
300BPH Automatic Plastic Bottle 3 Gallon 18.9L Bottled Water Filling Capping Machine

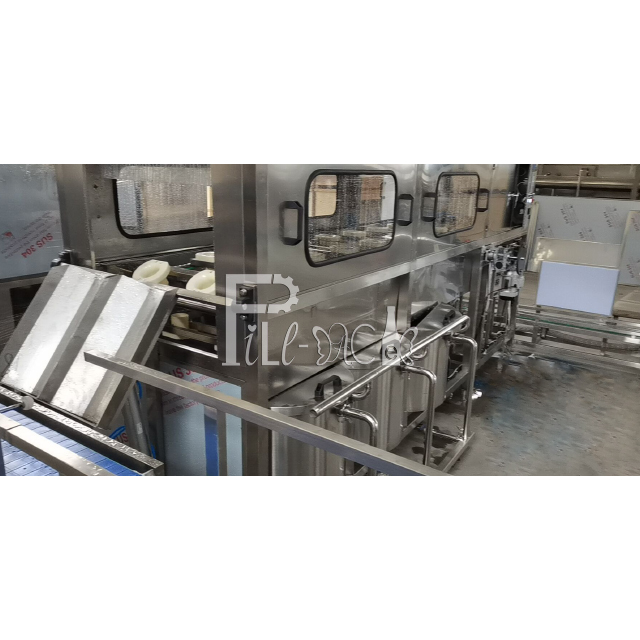

Filling and capping
Filling value will driven by cylinder to insert into barrel and start to fill, filling time is controlled by PLC, and filling time is adjustable by control panel according to filling liquid surface.
After filling process finish, the filled barrel will be pushed to capping position by barrel stop cylinder, the whole process finish till now.
300BPH Automatic Plastic Bottle 3 Gallon 18.9L Bottled Water Filling Capping Machine

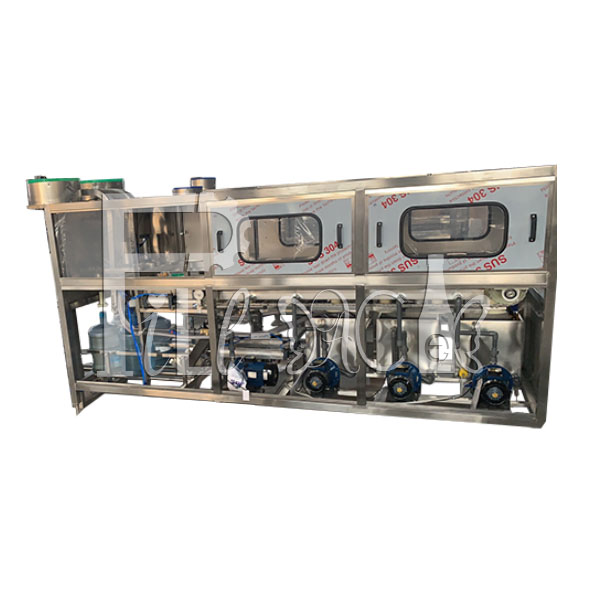

Drop bottle
The barrel after washing will move down 45 degree through the passing chain and will passing out chain and turn over 45 degree by barrel lift cylinder to filling position for filling.
300BPH Automatic Plastic Bottle 3 Gallon 18.9L Bottled Water Filling Capping Machine
